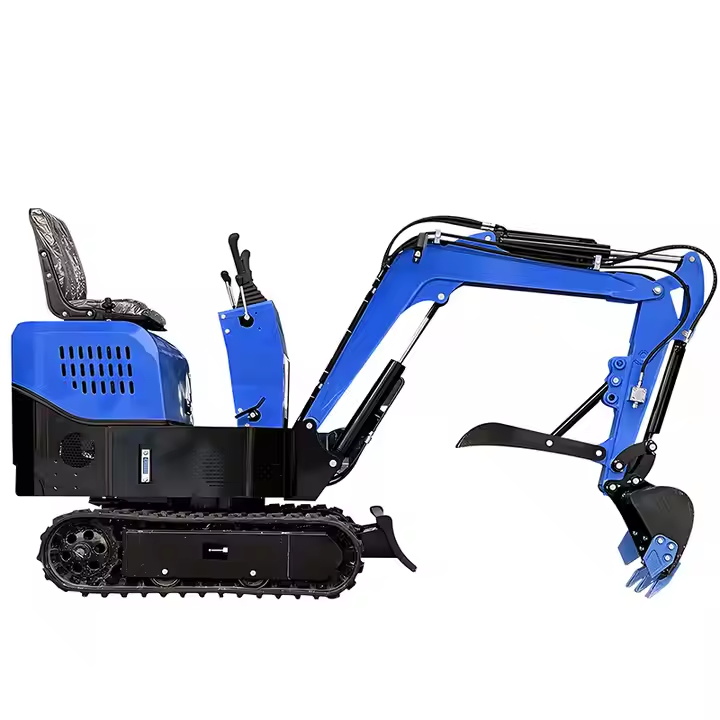

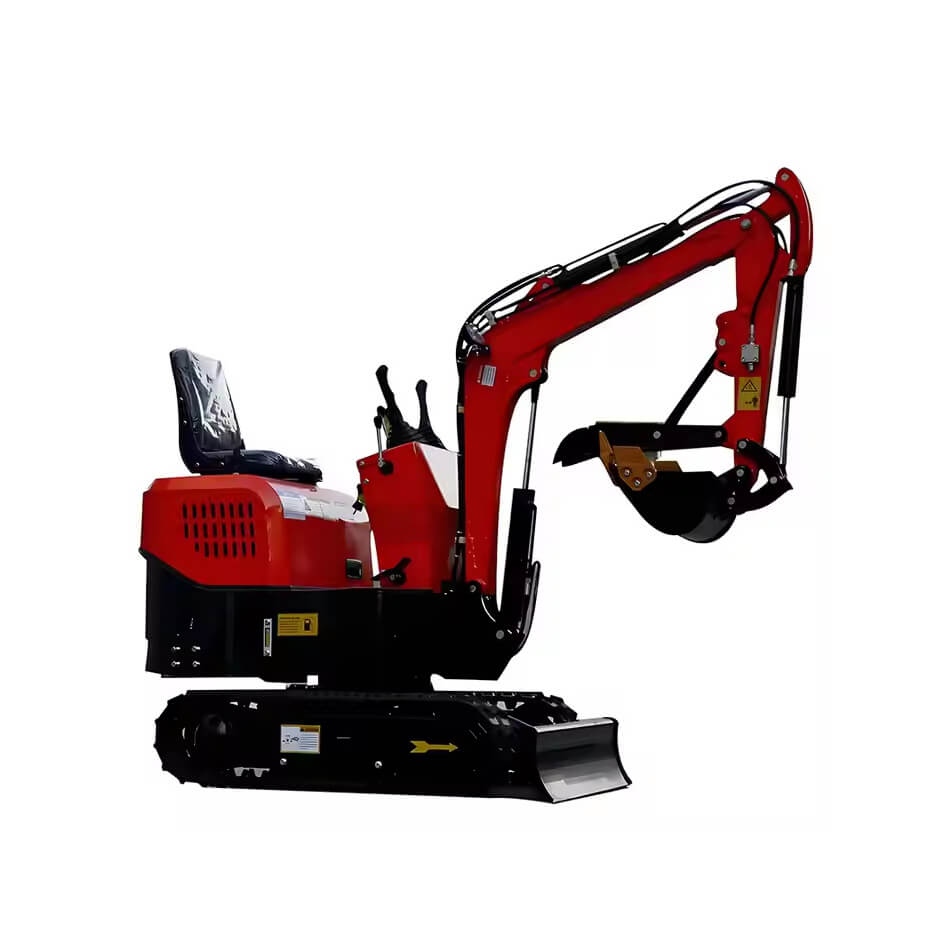

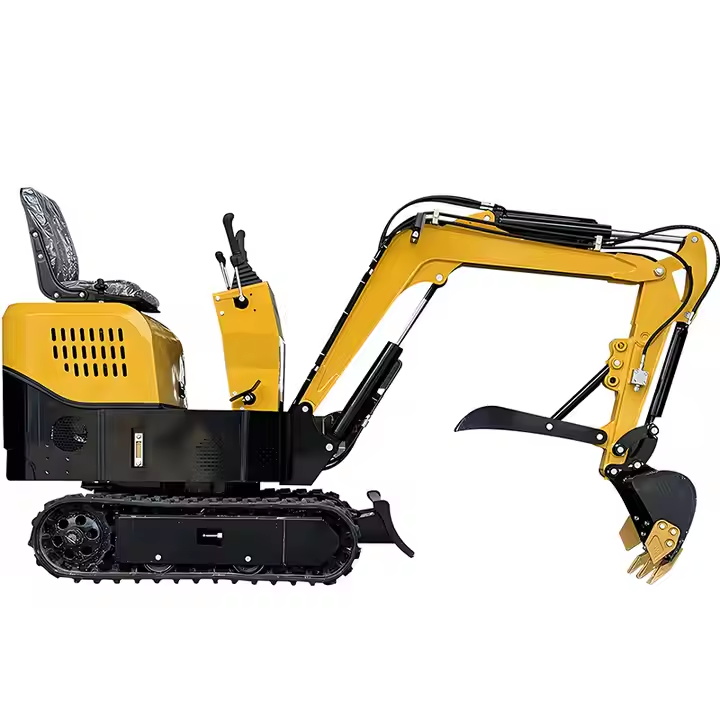

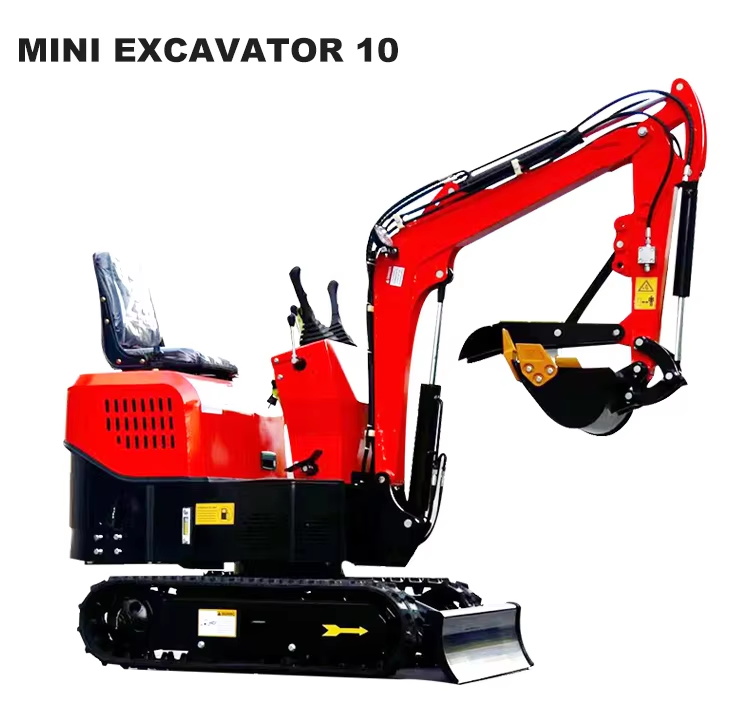

Mini Excavtor 10

Mini excavators equipped with various accessories can accurately complete fine operations such as excavation and crushing, meeting the needs of landscaping, indoor demolition and other engineering projects.

Product Features

1. Fine Multi Energy

Mini excavators equipped with various accessories can accurately complete fine operations such as excavation and crushing, meeting the needs of landscaping, indoor demolition and other engineering projects.

2. Compact and agile

Ultra small size and turning radius enable easy turning and relocation in narrow streets,indoor spaces, and other confined spaces, helping with urban micro renovation and interior decoration.

3. Efficient and energy-saving

Energy saving engine and optimized hydraulic system, ensuring power and low energy consumption, fast operation and cost control.

4. Convenient control

Ergonomic operating room, with reasonable and precise layout of control buttons and levers, easy to use, and comfortable to operate.

Product Applications

1. Construction site: Used for excavating soil, transporting building materials, quickly completing foundation construction and structural construction, and improving construction efficiency.

2. Road maintenance: Clean the road surface, rim the plants on both sides of the road.maintain smooth and safe traffic, especially in urban and rural road maintenance.

3. Hori cultural maintenance: Clearing weeds, loosening soil, and carrying out soil improvement in parks and gardens to maintain a clean green environment.

4. Waste management: Handling and disposing of various types of waste in garbage dumps and waste treatment centers, keeping the site clean.

Parameters

parameter unit numerical value parameter unit numerical value
Bucket capacity 0.025 Chassis width mm 835
Excavation bucket width mm 380 Minimum turning radius mm 1290
Excavation height mm 2650 Tail turning radius mm 760
Dig deep mm 1550 Seat height mm 1500
Max Climb Capability Degree 30 Central rotation Yikaide Hydraulic
Hydraulic oil tank capacity L 20 Walking motor 6K-310/Songheng Hydraulic
Oil tank capacity L 1.1 Rotary motor OMRS-250/Songheng Hydraulic
Ground clearance mm 380 valve Jinzhou Shuangling
oil consumption L/H 1 pump Jiangsu Huaheng Hydraulic
power KW 13-15 horsepower Cylinder Ruihang Technology
weight KG 823 Whole vehicle fuel pipe Shihai Hydraulic
track width mm 180 Whole vehicle wiring harness Hezhong Intelligence
Track length mm 1250 Overall dimensions 2650MM×850MM×2200MM
